    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction

    Ask Lasest Price
    Brand Name : YIXIST
    Model Number : YSM-8101-01
    Price : $1,622.00/pieces >=1 pieces
    • Product Details
    • Company Profile

    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction

    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction
    PRODUCT OVERVIEW
    YSM-8101-01series miniature spectrometers, with a miniature business card-size optical platform, are very convenient to carry. The optimized optical path design enables a 0.35nm-5nm optical resolution. The resolution is up to 0.35nm-1nm. The dynamic range is enhanced to 300:1 and it is an economical option for spectral measurements. RS232/RS422, Trigger modes, SDK and Deep customization is available for industrial or scientific applications.

    Feature

    Business card-size, easy to carry. Crossed asymmetric CT optical path structure with interference filter eliminates secondary diffraction. SMA905 fiber connector for easy connection to other devices. Customizable wavelength range and optical resolution. USB 2.0 data transmission and power supply; supportRS232/RS422 communication; support multiple trigger modes. Powerful software with automatic peak wavelength and bandwidth calculation functions. Support secondary development— bottom and side fixing holes fac iliate system integration.

    Application

    Online water and gas quality monitoring
    Transmissivity, absorbance and concentration measurement
    Reflectivity and color measurement
    LED chromaticity measurement
    Solar energy spectroscopy testing
    Fluorescence spectroscopy measurement
    Raman spectroscopy measurements
    Laser spectroscopy measurement
    MODEL LIST
    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction
    *Other wavelength ranges and resolutions can be customized.
    *Cylinder lenses can be added to some models to increase the sensitivity.
    GRATING SELECTION
    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction
    *Note: Using 1800 line grating, the width of the wavelength range in the long-wave area may not reach 233nm.
    PRODUCT SPECIFICATIONS
    Model
    YSM-8102-02
    Dimension
    140mm x 110mm x 46mm
    Weight
    0.7 Kg
    Wavelength range
    180nm - 1100nm
    Optical resolution
    ~0.06nm-0.6nm
    Fiber connector
    SMA905
    Detector
    Hamamatsu S11639 2048 Linear CCD
    Pixel
    2048 pixels, size 14μm×200 μm
    Signal to noise ratio
    600:1 at full signal
    Linearity
    >99%
    Stray light
    <0.1% (600nm, 435nm)
    A/D resolution
    16 bit
    Integration time
    0.5ms - 10s
    Dynamic range
    300:1
    Working mode

    Software, hardware, synchronization
    Power consumption
    250 mA, 5 VDC
    Operating temperature
    5℃ -35℃(25℃)
    Computer interface
    USB2.0(12Mbps)
    RS232(115200bps)
    Operating system
    Win XP, Win7,Win8, Win10
    Power supply mode
    USB or 5VDC
    TYPICAL TESTING
    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction

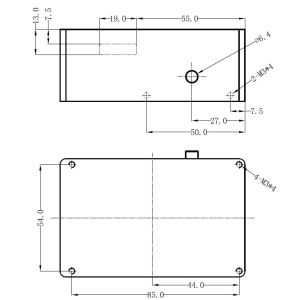

    DIMENSION
    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction
    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction
    RELATED ACCESSORIES
    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction
    Fiber
    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction
    Light Source
    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction
    Sample Holder
    COMPANY PROFILE
    Customized ODM Support Portable Spectrum Analyzer for Eliminating Secondary Diffraction

    YIXI Smart Technology (YIXIST) Co., Ltd.
    YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which integrates research, development, manufacturing, and sales of digital and networked intelligent equipment.It is a vigorous and enterprising high-tech corporation founded by professors and engineers.

    "Professionalism, concentration, and integrity" is our business philosophy. The company is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers continuously.YIXIST can independently manufacture complete sets of optical measuring equipment and provide comprehensive solutions for digital physics experiments development.
