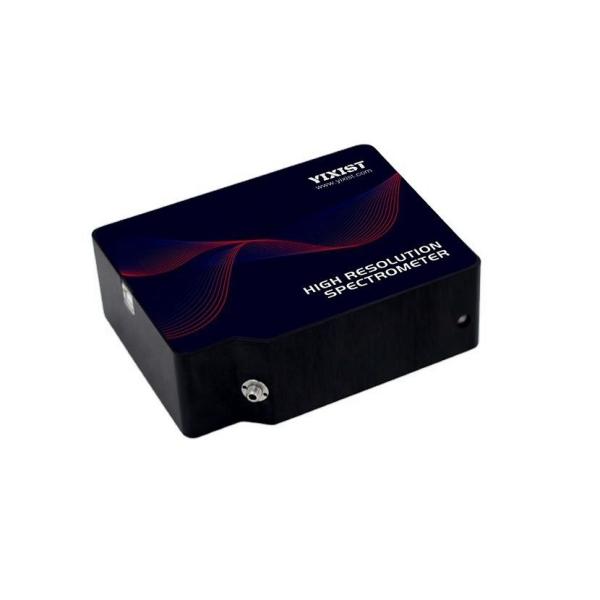

    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution

    Ask Lasest Price
    Brand Name : YIXIST
    Model Number : YSM-8102-02
    Price : $2,950.00/pieces >=1 pieces
    • Product Details
    • Company Profile

    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution

    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution
    PRODUCT OVERVIEW
    YSM-8102-02 spectrometer is equipped with a Hamamatsu S11639 line array detector; achieves a dynamic range of 10000:1, an integration time as low as 0.5ms, and a signal-to-noise ratio of 600:1; supports RS232 /RS422 communication; has better anti-interference performance; is suitable for both industrial and scientific applications.

    Feature

    Up to 0.06nm optical resolution.
    Compact size and easy operation.
    Crossed asymmetric C-T optical structure with interference filters eliminates secondary diffraction.
    SMA905 fiber connector for easy connection to other devices.
    Customizable wavelength range and optical resolution.
    USB 2.0 for data transmission and power supply.
    Support RS232/RS422 and multiple trigger modes.
    Powerful software with automatic peak wavelength and bandwidth calculation functions.
    Support OEM and in-depth customization.

    Application

    Laser’s central wavelength, FWHM, and stability measurement LED measurement LIBS applications Solar spectra analysis Fluorescence spectra analysis Color measurement
    MODEL LIST
    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution
    *Other wavelength ranges and resolutions can be customized.
    *Cylinder lenses can be added to some models to increase the sensitivity.
    PRODUCT SPECIFICATIONS
    Model
    YSM-8102-02
    Dimension
    140mm x 110mm x 46mm
    Weight
    0.7 Kg
    Wavelength range
    180nm - 1100nm
    Optical resolution
    ~0.06nm-0.6nm
    Fiber connector
    SMA905
    Detector
    Hamamatsu S11639 2048 Linear CCD
    Pixel
    2048 pixels, size 14μm×200 μm
    Signal to noise ratio
    600:1 at full signal
    Linearity
    >99%
    Stray light
    <0.1% (600nm, 435nm)
    A/D resolution
    16 bit
    Integration time
    0.5ms - 10s
    Dynamic range
    300:1
    Working mode

    Software, hardware, synchronization
    Power consumption
    250 mA, 5 VDC
    Operating temperature
    5℃ -35℃(25℃)
    Computer interface
    USB2.0(12Mbps)
    RS232(115200bps)
    Operating system
    Win XP, Win7,Win8, Win10
    Power supply mode
    USB or 5VDC
    DIMENSION
    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution
    RELATED ACCESSORIES
    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution
    Fiber
    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution
    Light Source
    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution
    Sample Holder
    COMPANY PROFILE
    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution
    YIXI Smart Technology (YIXIST) Co., Ltd.
    YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers globally.
    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution
    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution
    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution
    ODM Supported Hamamatsu S11639 2048 Linear CCD Spectrum Analyzer with High Resolution
    Currently we're working with hunderds of well known universities and research institutions in China and are actively involved in offline events as Education Seminars and Exhibitions.
