    315Nm 1100Nm Wavelength Range 0.06Nm-0.3Nm Spectrum Analyzer with 14μm*200μm Pixel

    Ask Lasest Price
    Brand Name : YIXIST
    Model Number : YSM-8102-01
    Price : $2,655.00/pieces >=1 pieces
    • Product Details
    • Company Profile

    315Nm 1100Nm Wavelength Range 0.06Nm-0.3Nm Spectrum Analyzer with 14μm*200μm Pixel

    315Nm 1100Nm Wavelength Range 0.06Nm-0.3Nm Spectrum Analyzer with 14μm*200μm Pixel
    PRODUCT OVERVIEW
    YSM-8102 series spectrometers, with high-resolution optical-mechanical platforms, are lighter but of better performance (up to 0.06nm optical resolution). Users can obtain different optical resolutions and wavelength responding ranges by selecting different gratings and slits.

    Feature

    Up to 0.06nm optical resolution.
    Compact size and easy operation.
    Crossed asymmetric C-T optical structure with interference filters eliminates secondary diffraction.
    SMA905 fiber connector for easy connection to other devices.
    Customizable wavelength range and optical resolution.
    USB 2.0 for data transmission and power supply.
    Support RS232/RS422 and multiple trigger modes.
    Powerful software with automatic peak wavelength and bandwidth calculation functions.
    Support OEM and in-depth customization.

    Application

    Laser’s central wavelength, FWHM, and stability measurement LED measurement LIBS applications Solar spectra analysis Fluorescence spectra analysis Color measurement
    MODEL LIST
    315Nm 1100Nm Wavelength Range 0.06Nm-0.3Nm Spectrum Analyzer with 14μm*200μm Pixel
    *Other wavelength ranges and resolutions can be customized.
    *Cylinder lenses can be added to some models to increase the sensitivity.
    PRODUCT SPECIFICATIONS
    Model
    YSM-8102-01
    Dimension
    140mm x 110mm x 46mm
    Weight
    0.7 Kg
    Wavelength range
    315nm - 1100nm
    Optical resolution
    ~0.06nm-0.3nm
    Fiber connector
    SMA905
    Detector
    TOSHIBA TCD1304 Linear CCD
    Pixel
    3648 pixels, size 14μm×200 μm
    Signal to noise ratio
    300:1 at full signal
    Linearity
    >99%
    Stray light
    <0.1% (600nm, 435nm)
    A/D resolution
    16 bit
    Integration time
    4ms - 10s
    Dynamic range
    300:1
    Trigger mode
    Software, hardware, synchronization
    Power consumption
    250 mA, 5 VDC
    Operating temperature
    5℃ -35℃(25℃)
    Computer interface
    USB2.0(12Mbps)
    RS232(115200bps)
    Operating system
    Win XP, Win7,Win8, Win10
    Power supply mode
    USB or 5VDC

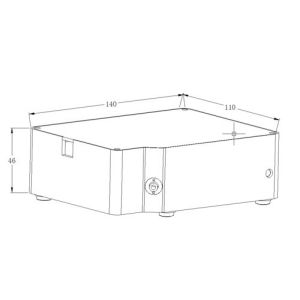

    DIMENSION
    315Nm 1100Nm Wavelength Range 0.06Nm-0.3Nm Spectrum Analyzer with 14μm*200μm Pixel
    RELATED ACCESSORIES
    315Nm 1100Nm Wavelength Range 0.06Nm-0.3Nm Spectrum Analyzer with 14μm*200μm Pixel
    Fiber
    315Nm 1100Nm Wavelength Range 0.06Nm-0.3Nm Spectrum Analyzer with 14μm*200μm Pixel
    Light Source
    315Nm 1100Nm Wavelength Range 0.06Nm-0.3Nm Spectrum Analyzer with 14μm*200μm Pixel
    Sample Holder
