    YLS-8301-02 Bulb Replaceable Tungsten Light Source 300-2400nm 20-100W with Tungsten Bulb

    Ask Lasest Price
    Brand Name : YIXIST
    Model Number : YLS-8301-02
    Price : $855.00/pieces >=1 pieces
    • Product Details
    • Company Profile

    YLS-8301-02 Bulb Replaceable Tungsten Light Source 300-2400nm 20-100W with Tungsten Bulb

    YLS-8301-02 Bulb Replaceable Tungsten Light Source 300-2400nm 20-100W with Tungsten Bulb
    PRODUCT OVERVIEW

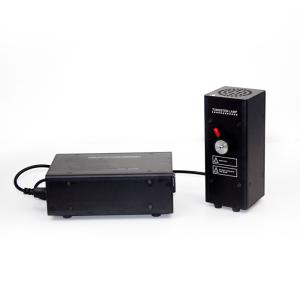

    The YLS-8301-02 tungsten illuminant provides an economical solution for applications requiring visible-NIR continuous wave radiation. Illuminant are characterized by stable output and weak UV radiation, making them the preferred choice for many measurement and lighting applications. Users can choose from several tungsten lamps of different specifications from 20-100W to meet the needs of experiments and analysis.

    YLS-8301-02 tungsten illuminant adopts external independent power supply. The power supply provides a stable voltage and current to the bulb while maximizing the life of the bulb.

    The stability of the illuminant in terms of wavelength and output intensity depends largely on the operating temperature and environment pressure of the bulb. The light box part of this illuminant is equipped with a fan for cooling, which ensures that the bulb works at the right temperature. Equipped with different interfaces and adapters, tungsten bulbs compatible with 20-100W specifications work in this light box. The light outlet is equipped with a removable SMA905 fiber optic connector for easy connection of illuminant and other optical devices via fiber.
    PRODUCT SPECIFICATIONS
    Model
    YLS-8301-02
    Output spectral range
    300nm-2400nm
    Optimum spectral range
    450nm-900nm
    Input voltage
    220VAC
    Output voltage
    12VDC
    Output light port
    Detachable SMA905 fiber connector (Φ14mm Output Port)
    Power supply size
    235mm × 145mm × 95mm
    Lamp box size
    110mm × 95mm × 210mm
    Warm-up time
    30min
    Spectral stability
    <3% (450nm-900nm)
    RELATED ACCESSORIES
    YLS-8301-02 Bulb Replaceable Tungsten Light Source 300-2400nm 20-100W with Tungsten Bulb
    Fiber
    YLS-8301-02 Bulb Replaceable Tungsten Light Source 300-2400nm 20-100W with Tungsten Bulb
    Spectrometer
    YLS-8301-02 Bulb Replaceable Tungsten Light Source 300-2400nm 20-100W with Tungsten Bulb
    Sample Holder
    COMPANY PROFILE
    YLS-8301-02 Bulb Replaceable Tungsten Light Source 300-2400nm 20-100W with Tungsten Bulb

    YIXI Smart Technology (YIXIST) Co., Ltd.
    YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which integrates research, development, manufacturing, and sales of digital and networked intelligent equipment.It is a vigorous and enterprising high-tech corporation founded by professors and engineers.

    "Professionalism, concentration, and integrity" is our business philosophy. The company is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers continuously.YIXIST can independently manufacture complete sets of optical measuring equipment and provide comprehensive solutions for digital physics experiments development.
