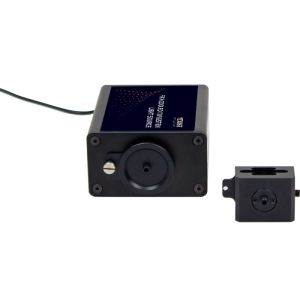

    YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm

    YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
    PRODUCT OVERVIEW
    YLS-8301-03 adopts fan cooling and is designed with a voltage regulation circuit, which greatly improves the stability of spectral output and the useful life of the illuminant, and is a compact tungsten illuminant that is very suitable for visible-NIR absorption spectroscopy and reflection spectral measurement. In addition, the illuminant can be configured install filters to obtain the corresponding wavelength of light. Available with modular accessories such as reflectivity and transmittance, the illuminant can be combined with a spectrometer to form a basic spectral analysis system for classroom instruction and student experiments.

    Feature

    Designed with voltage regulator circuit and fan cooling, the output spectrum is extremely stable and significantly improves the useful life of the light source, making it ideal for visible-NIR spectroscopy analysis.
    Detachable SMA905 fiber optic connector for convenient installation of filters or attenuators.
    Modular and rich accessory design, can be expanded into a spectral analysis system for measuring transmittance, absorbance, reflectivity, very suitable for experimental teaching.

    Application

    As a reference illuminant for visible-NIR spectral analysis, it is used for the measurement of transmittance, absorbance and reflectivity. Together with the transmittance and reflectance measurement modules, a spectral analysis system for experimental teaching is formed.
    PRODUCT SPECIFICATIONS
    Model
    YLS-8301-03
    Wavelength Range
    400 nm-2500 nm
    Lamp
    10W, 2000 H (Typical)
    Power
    15VDC, 2A
    Cooling
    Fan
    Dimension
    110mm*90mm*52.5mm
    EXPAND TO A SYSTEM
    YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
    YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
    YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
    TYPICAL TESTING
    YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
    RELATED ACCESSORIES
    YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
    Diffuse Reflectance Standards
    YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
    Spectrometer
    YLS-8301-03 Fan Cooling Tungsten Light Source for Visible-NIR Absorption Reflection Spectral Measurement 400-2000nm
    Fiber Holder
