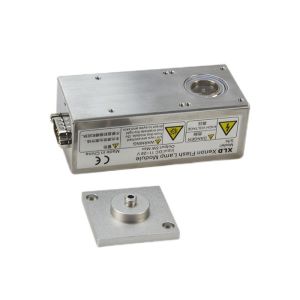

    YIXIST YLS-8302-01 5W Flash Xenon Light Source for Spectroscopic Analysis 185-2000nm

    Ask Lasest Price
    Brand Name : YIXIST
    Model Number : YLS-8302-01-0530
    Price : $811.00/pieces >=1 pieces
    • Product Details
    • Company Profile

    YIXIST YLS-8302-01 5W Flash Xenon Light Source for Spectroscopic Analysis 185-2000nm

    YIXIST YLS-8302-01 5W Flash Xenon Light Source for Spectroscopic Analysis 185-2000nm
    PRODUCT OVERVIEW
    YLS-8302-01 series scintillation pulse xenon lamp is a new illuminant integrating a xenon lamp bulb, a trigger and a high voltage power supply. It is widely used in spectral measurement applications and is more integrated into industrial online testing systems because it requires no preheating and generates less heat.

    Feature

    High radiation intensity and high flash instantaneous power, which helps to improve the S/N ratio of the meter Wide spectral range, covering UV, visible and infrared, range 185-2000nm Ultra-long service life, more than 100 million times the number of flashes Good stability, 1000 times flash CV value ≤ 2% Small volume, small heat generation, bebeficial to the stability of the optical machine No warm-up, start immediately, save test time DB-9 connector, plug and play.

    Application

    UV, visible and infrared spectroscopic analysis. Fluorescence analysis. Medical: enzyme immunoassay, urine tangible imaging, small POCT biochemistry. Industrial automation strobe illuminant. Analysis of air pollution gas NO and SO2. Laboratory and online water pollution analysis.
    PRODUCT SPECIFICATIONS
    Model
    YLS-8302-01-0230
    YLS-8302-01-0530
    Power
    2W
    5W
    Pluse Energy
    8.8mJ-13.8mJ optional
    22.4mJ - 35.0mJ optional
    Arc Length
    3.0 ± 0.3 mm
    Transparent panel material
    DM308 glass, UV transparent glass
    Optical radiation wavelength range
    185 - 2000 nm
    Light output stability
    Max 1.5% CV; Max4.2% PV -1000 flash
    Life (number of flashes)
    More than 100 million times
    Input voltage
    DC -Min 11.0 - Max 28.0 V
    Input Current
    11 V:Max 1.4 A
    Trigger voltage
    5V square wave pulse; high level pulse width ≥10 μS
    Ambient temperature
    0 - +40°C
    Storage temperature
    -40 - +90°C
    Use and storage humidity
    Max 95% Rh
    Cooling method
    Natural cooling
    Weight
    250g
    Size
    100 x 45 x 36mm
