    YSM-8105-20 256 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 25*250um 950-1700nm

    Ask Lasest Price
    Brand Name : YIXIST
    Model Number : YSM-8105-20
    Price : $5,900.00/pieces >=1 pieces
    • Product Details
    • Company Profile

    YSM-8105-20 256 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 25*250um 950-1700nm

    YSM-8105-20 256 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 25*250um 950-1700nm
    PRODUCT OVERVIEW
    The YSM-8105 series of NIR uncooling spectrometers is designed with a compact optical path and structure, which is easy for system integration. It also adopts a replaceable slit structure, which allows one spectrometer to be configured with a variety of slit widths to meet the needs of spectral measurements with different resolutions and sensitivities, providing the flexibility to expand to different applications. The YSM-8105 series has a built-in Hamamatsu high-performance NIR detector and is available in three versions, 128px, 256px and 512px. With a spectral detection range of 900nm-1700nm and extremely low power consumption, the YSM-8105 series is ideally suited for food sorting, bio-pharmaceutical and life science applications.

    Feature

    Hamamatsu 256 pixels uncooling InGaAs detector Compact size and easy for system integration Replaceable slit design for different resolution and sensitivity Real-time display peak wavelength and FWHM RS232, Trigger modes, SDK and Deep customization are available

    Application

    Grain and seed moisture analysis Quality monitoring of Fruits and Meat Process monitoring of Drug and Plastics manufacturing NIR Laser's CWL and FWHM
    MODEL LIST
    YSM-8105-20 256 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 25*250um 950-1700nm
    PRODUCT SPECIFICATIONS
    Model
    YSM-8105-20
    Detector
    InGaAs 256 pixel uncooled detector
    Pixel size 25µm ×250µm
    Wavelength response range 950nm-1700nm
    Dimension
    94mm×60mm×36.5mm
    Wavelength Range
    920nm-1700nm (pre-configured)
    Optical Resolution
    ~2nm (pre-configured)
    A/D
    16bit
    Signal-to-Noise Ratio
    10000:1
    Integration Time
    0.1ms-65s
    Dynamic Range
    14667:1
    Trigger Mode
    4 types (normal trigger, software trigger,
    hardware trigger, synchronous trigger)
    Power Consumption
    5VDC,250mA
    Fiber Connector
    SMA905
    Operating Temperature
    5℃-35℃ (recommended 25℃)
    Communication Interface
    USB2.0, RS232
    Operating System
    Win XP, Win 7, Win 8, Win10, Win11
    Power Supply
    USB

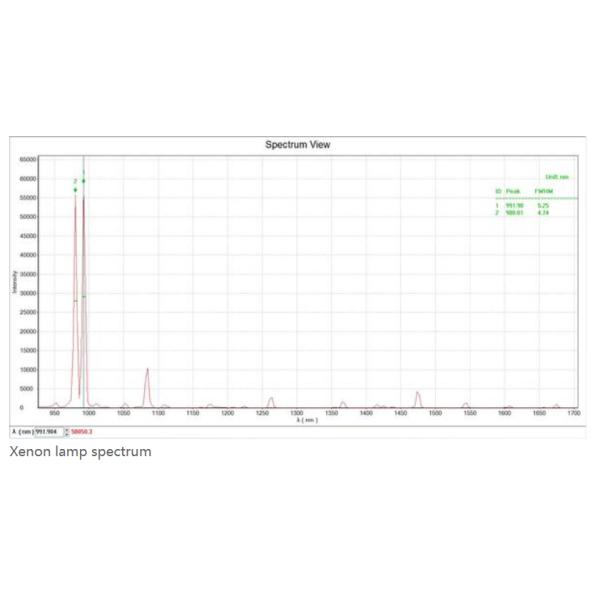

    TYPICAL TESTING
    YSM-8105-20 256 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 25*250um 950-1700nm
    YSM-8105-20 256 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 25*250um 950-1700nm
    RELATED ACCESSORIES
    YSM-8105-20 256 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 25*250um 950-1700nm
    Fiber
    YSM-8105-20 256 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 25*250um 950-1700nm
    Light Source
    YSM-8105-20 256 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 25*250um 950-1700nm
    Sample Holder
