    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD

    Ask Lasest Price
    Brand Name : YIXIST
    Model Number : YSM-8101-02
    Price : $1,917.00/pieces >=1 pieces
    • Product Details
    • Company Profile

    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD

    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD
    PRODUCT OVERVIEW
    The YSM-8101-02 series adopts more sensitive and higher-quality sensing elements; achieves a dynamic range of 10000:1, an integration time as low as 0.5ms, and a signal-to-noise ratio of 600:1; supports RS232/RS422 communication; has better anti-interference performance; is suitable for both industrial and scientific applications.

    Feature

    Business card-size, easy to carry. Crossed asymmetric CT optical path structure with interference filter eliminates secondary diffraction. SMA905 fiber connector for easy connection to other devices. Customizable wavelength range and optical resolution. USB 2.0 data transmission and power supply; supportRS232/RS422 communication; support multiple trigger modes. Powerful software with automatic peak wavelength and bandwidth calculation functions. Support secondary development— bottom and side fixing holes faciliate system integration.

    Application

    Online water and gas quality monitoring
    Transmissivity, absorbance and concentration measurement
    Reflectivity and color measurement
    LED chromaticity measurement
    Solar energy spectroscopy testing
    Fluorescence spectroscopy measurement
    Raman spectroscopy measurements
    Laser spectroscopy measurement
    MODEL LIST
    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD
    *Other wavelength ranges and resolutions can be customized.
    *Cylinder lenses can be added to some models to increase the sensitivity.
    GRATING SELECTION
    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD
    *Note: Using 1800 line grating, the width of the wavelength range in the long-wave area may not reach 233nm.
    PRODUCT SPECIFICATIONS
    Model
    YSM-8101-02
    Dimension
    94 mm×60 mm×34.5 mm
    Weight
    0.3 Kg
    Wavelength range
    180nm-1100nm
    Optical resolution
    ~0.35nm-5nm
    Fiber connector
    SMA905
    Detector
    Hamamatsu S11639 2048 Linear CCD
    Pixel
    2048 pixels, size 14μm×200 μm
    Signal to noise ratio
    600:1 at full signal
    A/D resolution
    16 bit
    Integration time
    0.5ms-65 s
    Dynamic range (Single)
    10000:1
    Trigger mode
    Software, hardware, synchronization
    Power consumption
    250 mA, 5 VDC
    Operating temperature
    5℃ -35℃(25℃)
    Computer interface
    USB2.0 (12Mbps)
    RS232(115200bps)
    Operating system
    Win XP, Win7,Win8, Win10
    Fixing hole
    4 of M3 fixing hole in the bottom
    2 of M3 fixing hole on side
    Power supply
    USB
    TYPICAL TESTING
    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD
    Mercury-xenon Lamp Spectrum

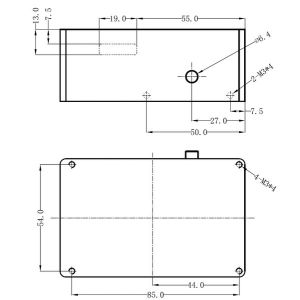

    DIMENSION
    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD
    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD
    RELATED ACCESSORIES
    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD
    Fiber
    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD
    Light Source
    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD
    Sample Holder
    COMPANY PROFILE
    High Dynamic Range Sma905 Fiber Connector Spectrum Analyzer with Hamamatsu S11639 CCD

    YIXI Smart Technology (YIXIST) Co., Ltd.
    YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which integrates research, development, manufacturing, and sales of digital and networked intelligent equipment.It is a vigorous and enterprising high-tech corporation founded by professors and engineers.

    "Professionalism, concentration, and integrity" is our business philosophy. The company is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers continuously.YIXIST can independently manufacture complete sets of optical measuring equipment and provide comprehensive solutions for digital physics experiments development.
