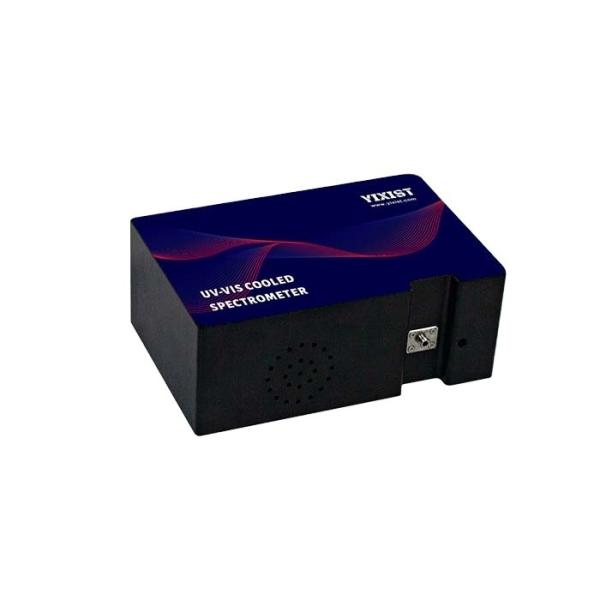

    Wavelength Range 200-1100nm 2048 Pixels Spectrometer with TE-Cooling YIXIST YSM-8104-08

    Ask Lasest Price
    Brand Name : YIXIST
    Model Number : YSM-8104-08
    Price : $14,749.00/pieces >=1 pieces
    • Product Details
    • Company Profile

    Wavelength Range 200-1100nm 2048 Pixels Spectrometer with TE-Cooling YIXIST YSM-8104-08

    Wavelength Range 200-1100nm 2048 Pixels Spectrometer with TE-Cooling YIXIST YSM-8104-08
    PRODUCT OVERVIEW
    YSM-8104-08 series high-performance spectrometer adopts Hamamatsu 2048 x122 pixel area array back-illuminated CCD with TE-cooling. Its pixel size is 12µm×12µm with good scientific-grade sensitivity, especially for scientificre search. Its extremely optimized low-noise circuits uses an 18-bit A/D converter, coupled with an excellent CT optical structure, which greatly improves the signal-to-noise ratio, sensitivity and thermal stability, and is suitable for Raman, fluorescence and other complex scientific work. In addition, YSM-8104-08 series spectrometers adopt Hamamatsu S10141-1107S-01 series 2048 x 122-pixel TE-cooling CCD, which is of higher pixel resolution.

    Features

    Hamamatsu back-illuminated TE-cooling area array CCD with 1000:1 S/N ratio. 18-bit A/D conversion with 100000:1 dynamic range (typical). Replaceable slit design (5µm, 10µm, 25µm, 50µm, 100µm, and 200µm). 1024 pixels and 2048 pixels versions. Up to 24µm x 24µm pixel size. Crossed asymmetric C-T optical structure and interference filters eliminate secondary diffraction. SMA905 fiber connector for easy connection. Customizable wavelength range and optical resolution. USB 2.0 data transmission and power supply; support RS232/RS422 and trigger modes. Powerful software with automatic peak wavelength and bandwidth calculation functions. Support OEM and in-depth customization.

    Application

    UV-VIS weak spectral measurement Raman Fluorescence One of the best Choices for research application
    MODEL LIST
    Wavelength Range 200-1100nm 2048 Pixels Spectrometer with TE-Cooling YIXIST YSM-8104-08
    *Other wavelength ranges and resolutions can be customized.
    *Cylinder lenses can be added to some models to increase the sensitivity.
    PRODUCT SPECIFICATIONS
    Model
    YSM-8104-08
    Detector
    Hamamatsu Company, back-illuminated thin-film
    refrigerated area CCD (S10141-1107S-01)
    2048×122 pixels
    Pixel size 12µm×12µm
    Wavelength response range 200nm-1100nm
    Size
    190mm×120mm×66mm
    Wavelength Range
    200nm-950nm (Pre-configured)
    Optical Resolution
    ~1nm (Pre-configured 25µm slit)
    Signal to noise ratio
    1000:1
    A/D
    18bit
    Integration Time
    8ms-3600s
    Dynamic Range
    100000:1
    Trigger Mode
    Software, hardware, synchronous
    Fiber Connector
    SMA905
    Operating Temperature
    5℃-35℃(Recommended temperature 25℃)
    Communication Interface
    USB2.0, RS232
    Operating System
    Win XP, Win 7, Win 8, Win10
    Power Supply
    2A, 5VDC
    TYPICAL TESTING
    Wavelength Range 200-1100nm 2048 Pixels Spectrometer with TE-Cooling YIXIST YSM-8104-08
    DIMENSION
    Wavelength Range 200-1100nm 2048 Pixels Spectrometer with TE-Cooling YIXIST YSM-8104-08
    RELATED ACCESSORIES
    Wavelength Range 200-1100nm 2048 Pixels Spectrometer with TE-Cooling YIXIST YSM-8104-08
    Fiber
    Wavelength Range 200-1100nm 2048 Pixels Spectrometer with TE-Cooling YIXIST YSM-8104-08
    Light Source
    Wavelength Range 200-1100nm 2048 Pixels Spectrometer with TE-Cooling YIXIST YSM-8104-08
    Sample Holder
    COMPANY PROFILE
    Wavelength Range 200-1100nm 2048 Pixels Spectrometer with TE-Cooling YIXIST YSM-8104-08

    YIXI Smart Technology (YIXIST) Co., Ltd.
    YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which integrates research, development, manufacturing, and sales of digital and networked intelligent equipment.It is a vigorous and enterprising high-tech corporation founded by professors and engineers.

    "Professionalism, concentration, and integrity" is our business philosophy. The company is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers continuously.YIXIST can independently manufacture complete sets of optical measuring equipment and provide comprehensive solutions for digital physics experiments development.
